What are Printed Circuit Boards?

What’s the deal with printed circuit boards (PCBs)? They’re a vital part of electronics design, manufacturing, and repair. Here’s the beginner’s guide to PCBs.

PCB 101

Out of context, you might hear “PCB” and assume we’re talking about those nasty carcinogenic chemicals (a.k.a. polychlorinated biphenyl). But nope. A printed circuit board (PCB) is a flat board made from non-conductive materials (usually fiberglass or composite epoxy) with conductive pathways etched or printed on the surface to help connect different components mounted on the board.

PCB Components

Now, let’s talk about the components of a PCB.

  • Traces – Conductive pathways that connect board components.
  • Pads – Areas of exposed metal on the PCB where components are soldered.
  • Vias – Holes filled with conductive material connecting traces on different PCB layers.
  • Silkscreen – Printed markings on the board surface, including component labels, reference designators, and other information.

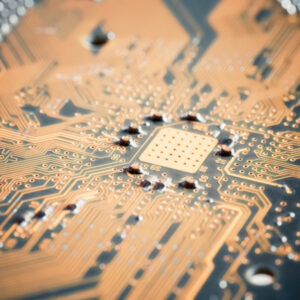

printed circuit board

Each of these components is essential for ensuring everything is connected and labeled properly. It’s like a puzzle, where every piece has its unique role.

What are the types of PCBs?

There are three basic types of printed circuit boards.

  • Single-layer – Contains conductive material on one side of the PCB.
  • Double-layer – As you guessed, double-layer has conductive material on both sides of the PCB.
  • Multi-layer – Consists of multiple layers of conductive material separated by insulating layers.

PCB Manufacturing Process

Turning a PCB design into a physical circuit board is pretty cool.

  • Design – The PCB design is created using specialized software. This defines the layout, traces, and component placement.
  • Fabrication – The design is translated into a physical PCB through processes like etching, drilling, and layer lamination.
  • Assembly – Electronic components are placed and soldered onto the PCB, often through automated processes.

Component Mounting

There are several ways to attach components to a printed circuit board, including through-hole mounting and Surface Mount Technology (SMT).

  • Through-Hole Mounting – Components are inserted into holes in the PCB and soldered on the opposite side.
  • SMT – Components are mounted directly onto the surface of the PCB using solder paste and reflow soldering.

PCB Design Considerations

Designing a PCB requires careful consideration. To ensure optimal performance, you must consider trace width, spacing, via placement, and component placement.

Signal integrity is another crucial factor to consider. You’ll want to make sure that the signals going through the PCB are high-quality and do not interfere with each other. It’s like creating a symphony—every note must be just right.

Of course, testing is essential to ensure that your PCB is working correctly. There are several ways to test it, like automated optical inspection (AOI) and in-circuit testing (ICT). It’s like giving your project a check-up to ensure everything runs smoothly.

Printed Circuit Board Applications

PCBs are used in many different kinds of electronics, from simple consumer electronics to complex industrial equipment and aerospace systems. It’s amazing to think about all their different applications.

printed circuit boards

So, there you have it—a glimpse into the wide world of PCBs. Hopefully, this overview has given you an understanding of their form and function. It’s an ever-expanding field.
